AC50 serial number 1354 - preamp

Last third of 1964 - very early large box.

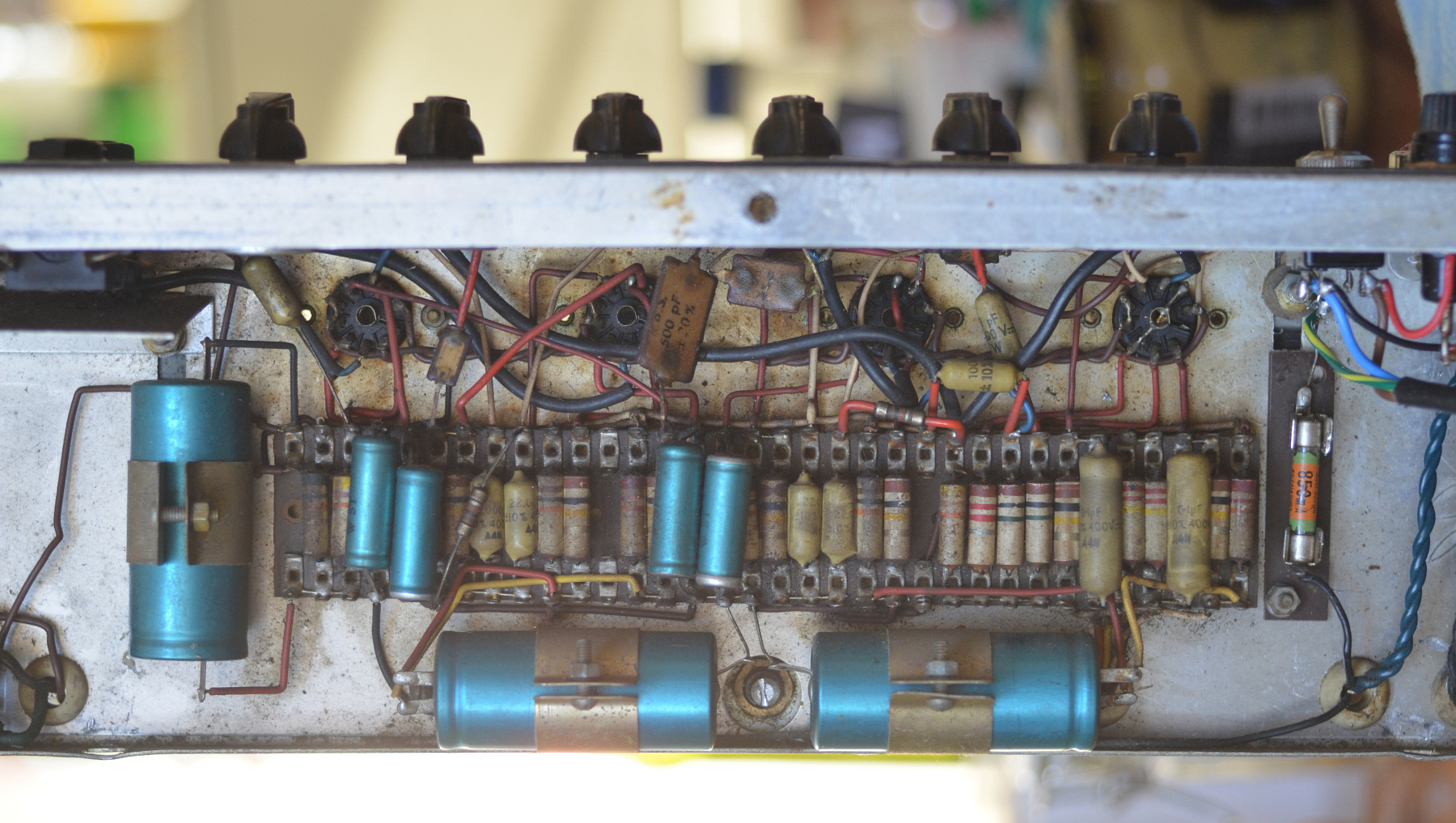

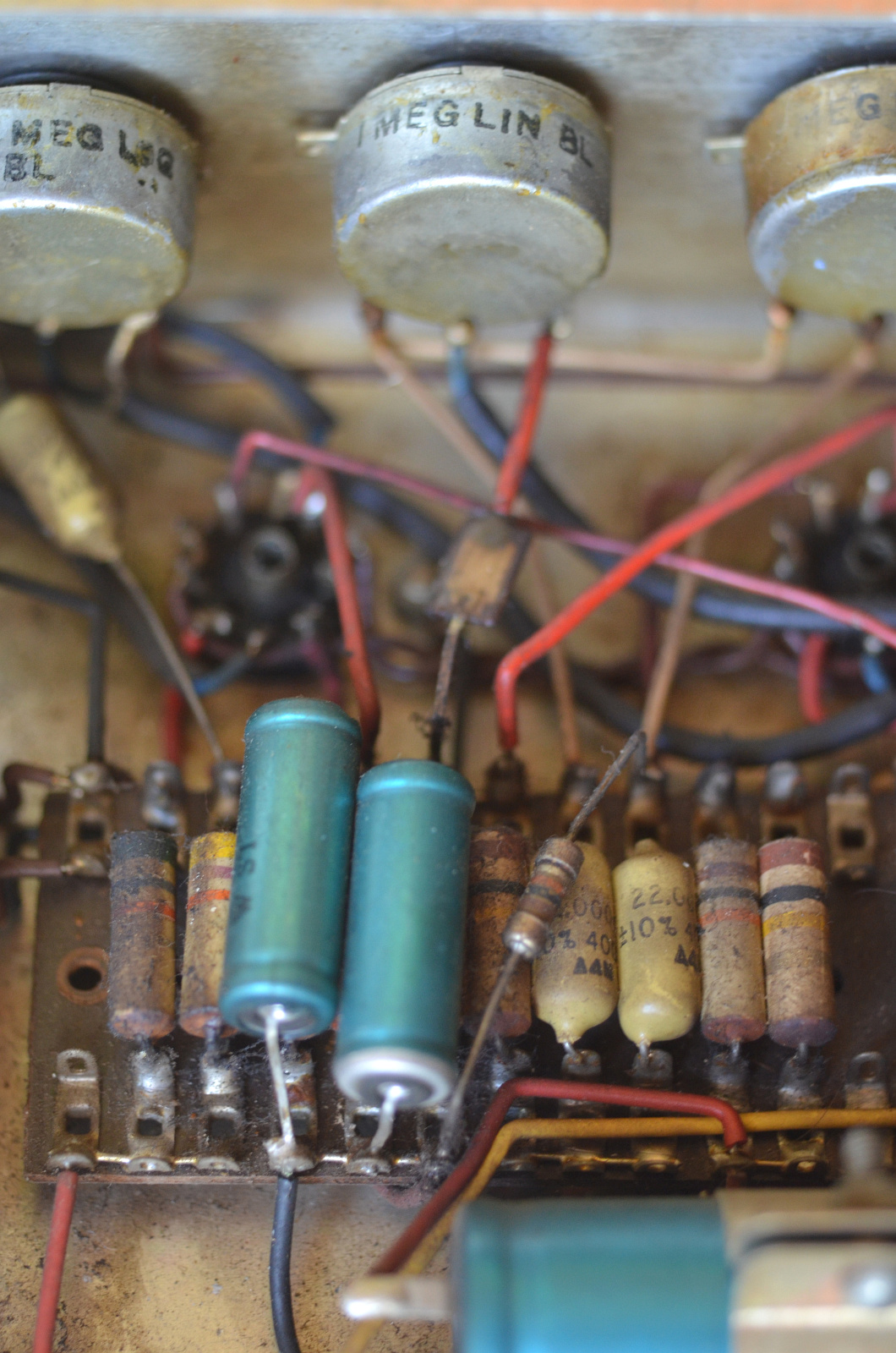

Continued from the first picture page on . Below, a selection of details of the preamp.

Click as ever on the thumbnails for larger images.

.

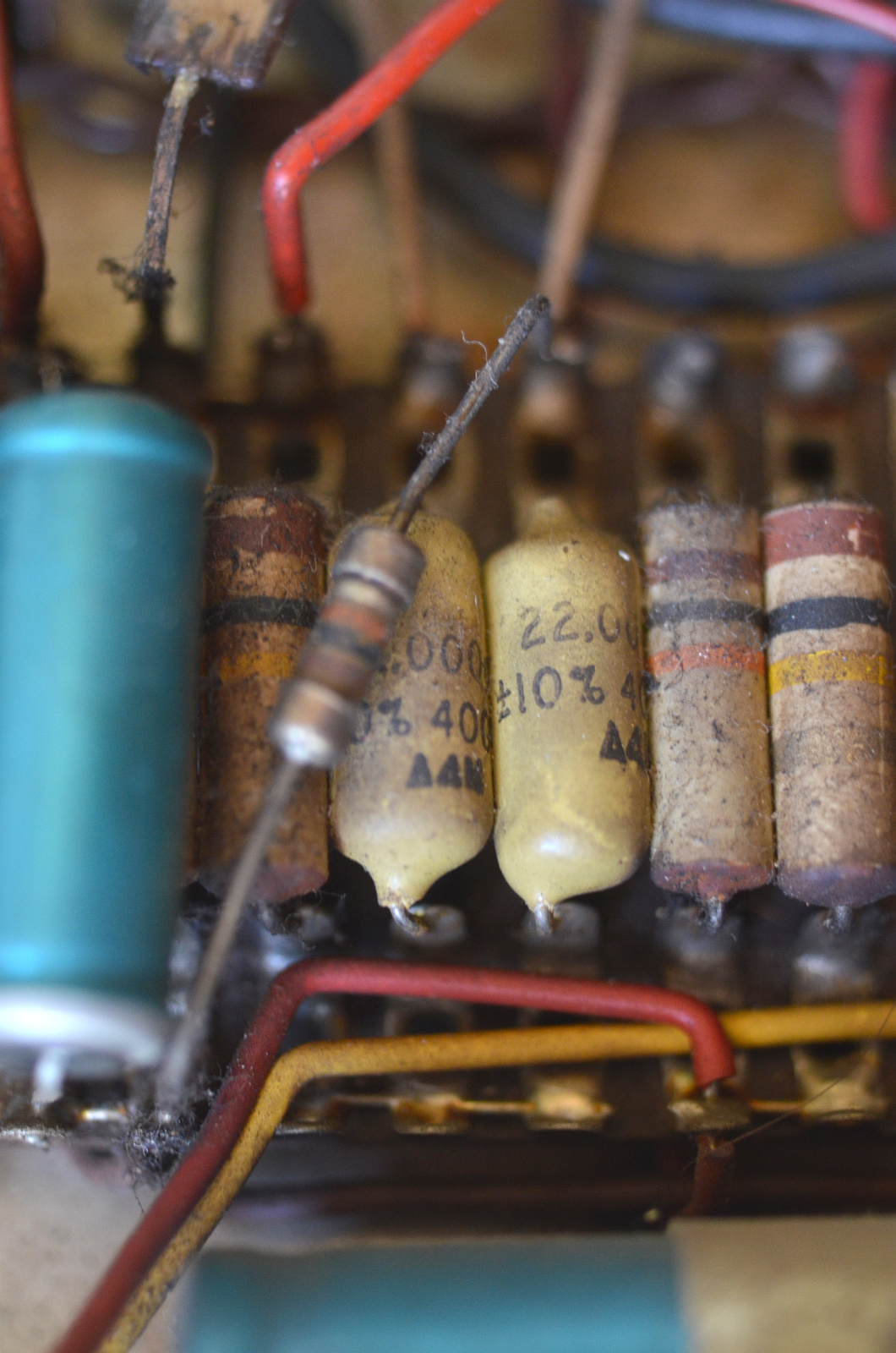

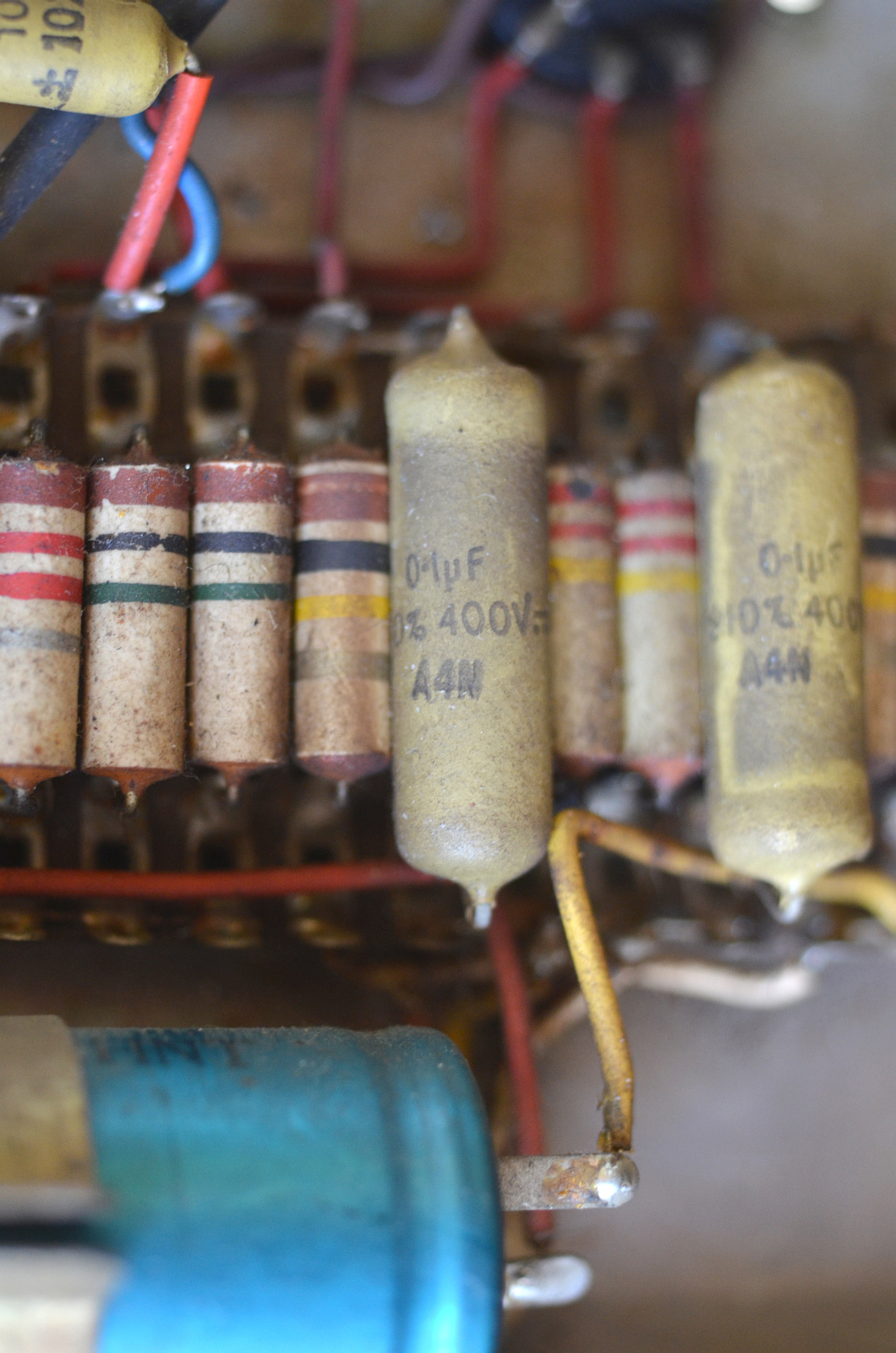

All mustard capacitors in the preamp have the date code "A4N" = first quarter of 1964.

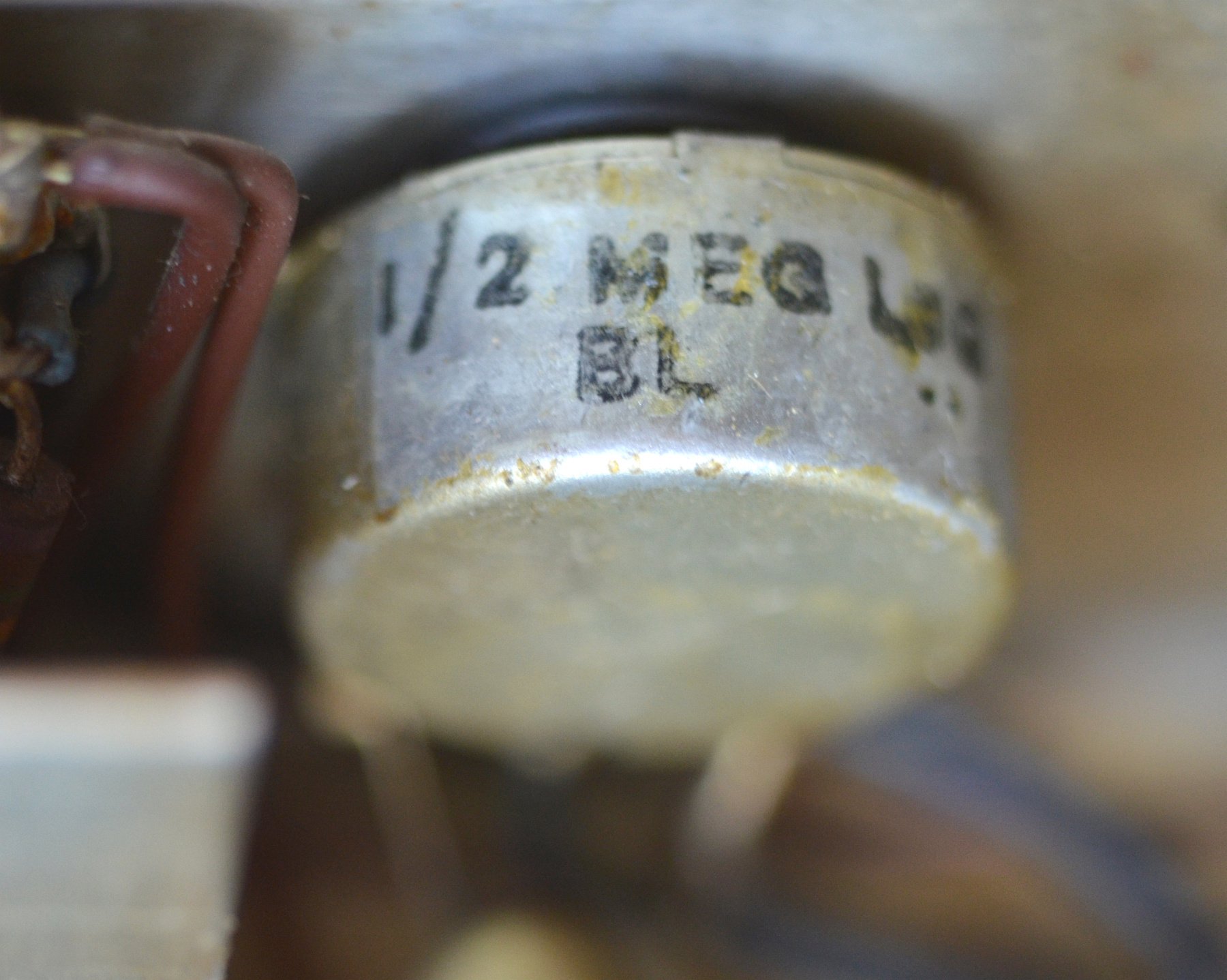

Date code "BL" = February 1964.

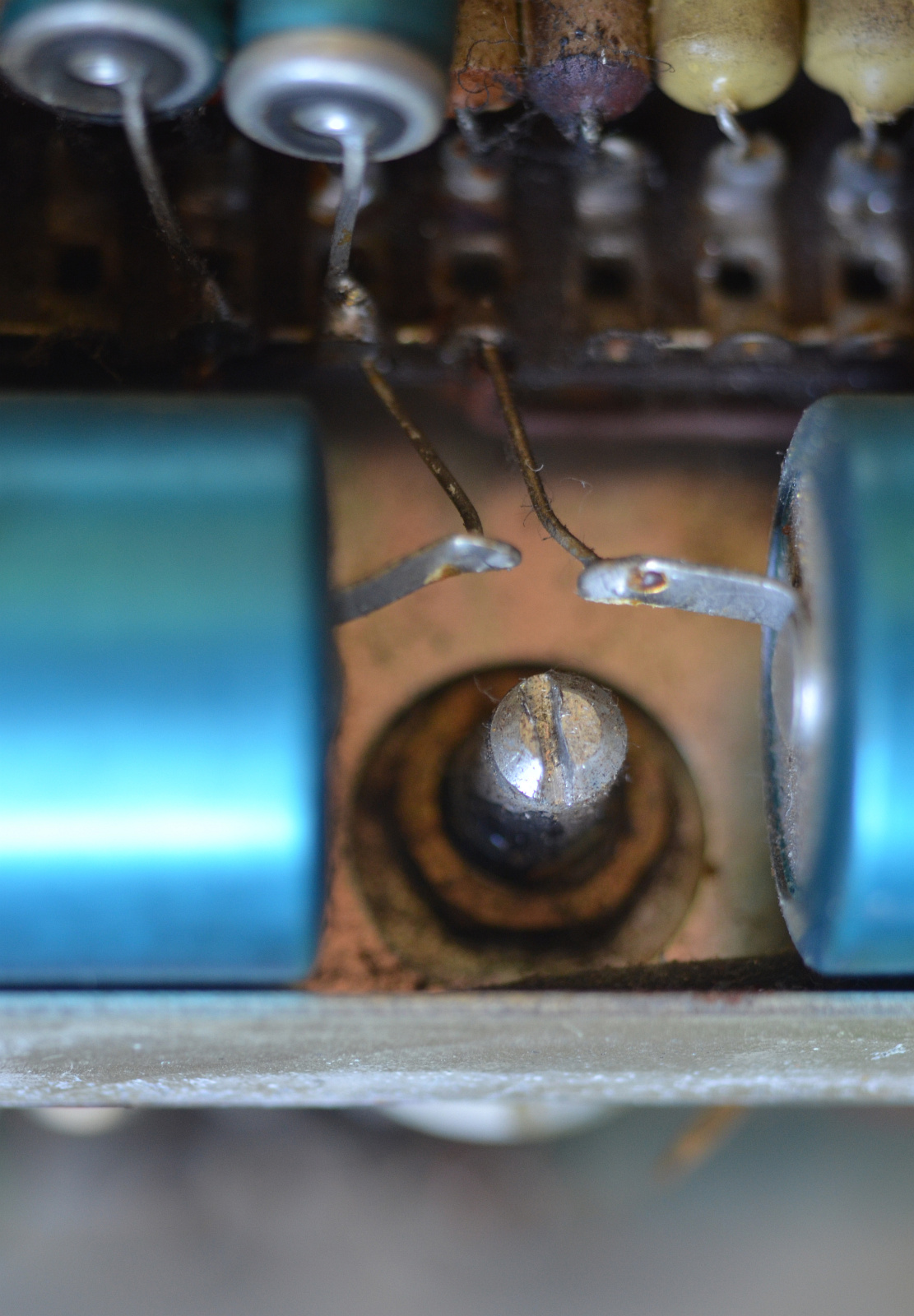

The bias voltage potentiometer accessible between the two filter caps.

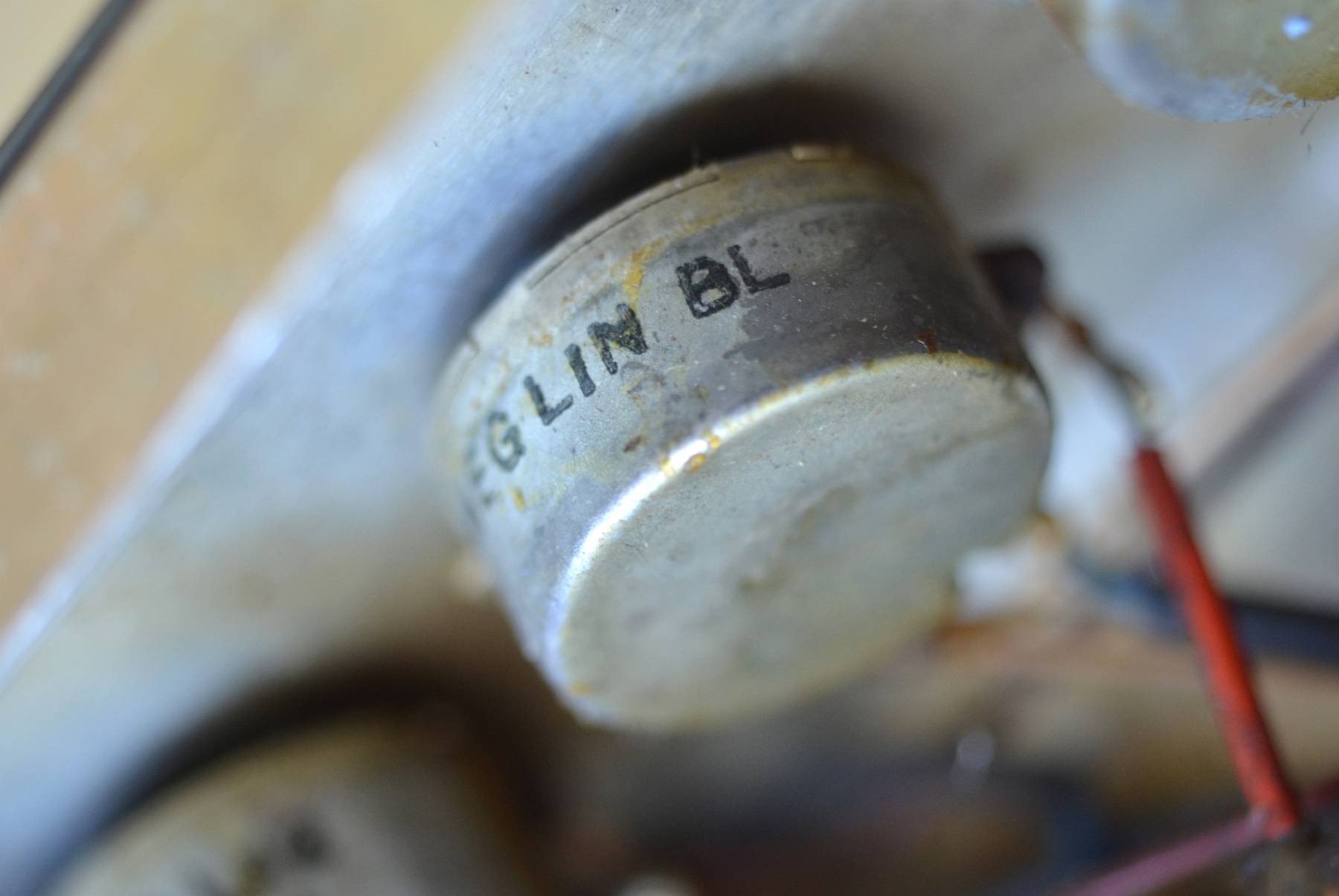

Date code "BL" = February 1964.

.

.

.

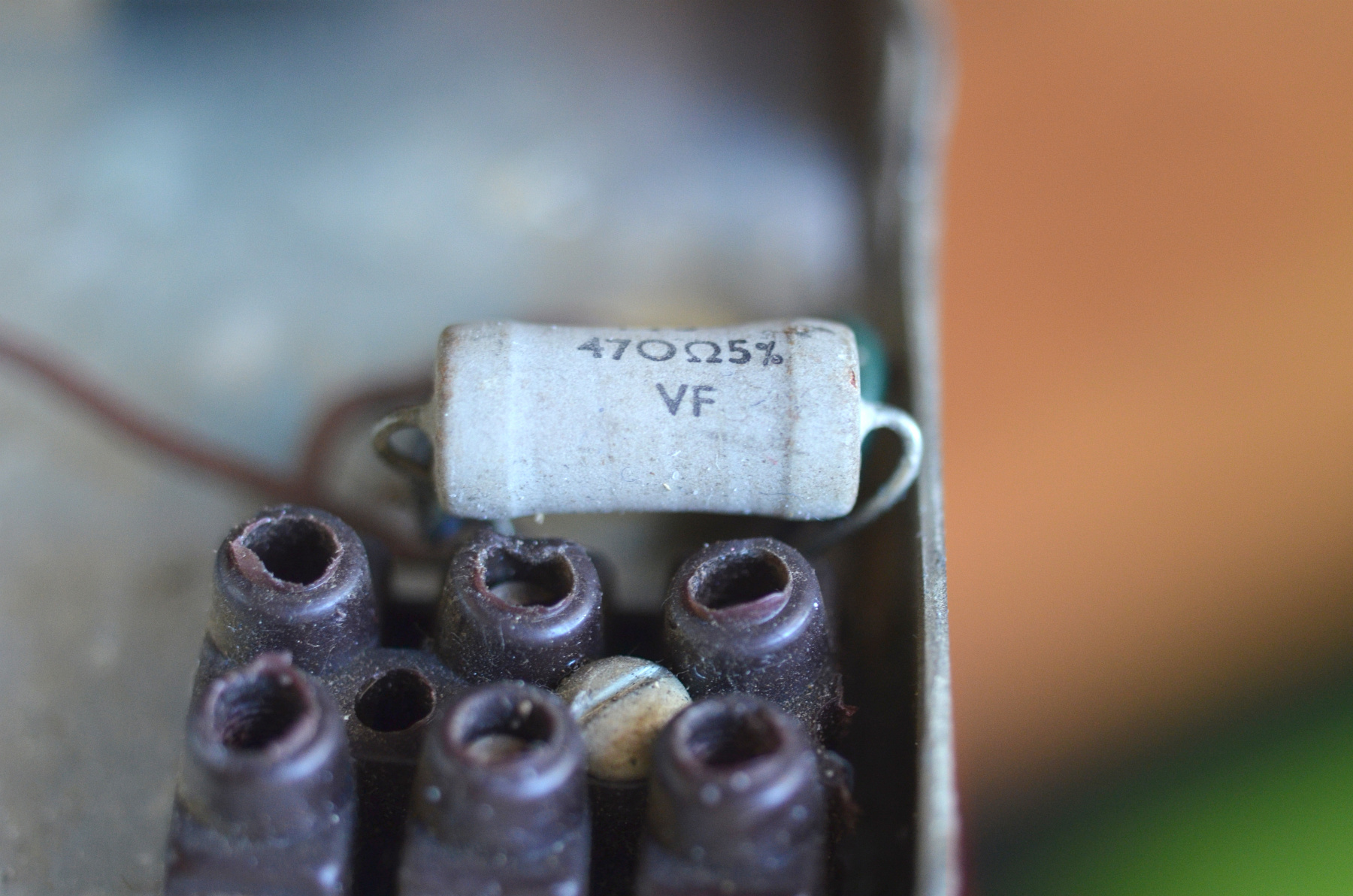

Date code "VF" = June 1964 on the Welwyn cement resistor. The resistor is there to give some protection in the event of a speaker cabinet going open circuit, or a complete lack altogether of load (ie. a speaker cab. not connected).

.

On to the power amp.
